Manufacturer of Web and Process Roll Cleaning Equipment
Web Cleaning
Process Roll Cleaning
Process Roll Cleaning
PAPER
FILM
FOILS
SLITTING
LAMINATING
SPECIALTY HEALTHCARE PACKAGING
ELECTRONIC FILM
Process Roll Cleaning
Process Roll Cleaning
Process Roll Cleaning
COATING ROLLS
CASTING ROLLS
HEATED ROLLS
NIP ROLLS
CHILL ROLLS
BACKING ROLLS
Automatic Roll Cleaning Features
Full Clean
Offset Clean
Offset Clean
Cleaning head wipes from the left edge of rollers or CI Drum to right edge. Our new oscillating feature scrubs as it moves for a full clean.
Offset Clean
Offset Clean
Offset Clean
The cleaner moves towards the center of the roller and upon reaching a preset sensor the pad extends wiping the roller from the inside the web to the outside edge of the roller. Once it reaches the edge of the roller it advances cloth and reverses in the opposite direction. The Offset Control function prevents contaminates on the outside edge of the product from being dragged under the web.
Spot Clean
Offset Clean
Oscillate Feature
Using the SET - UP on the control panel the operator is able to move the cleaning head to a pre-determined location and then allows the cleaner to wipe a single location with an oscillating motion.
Oscillate Feature
Oscillate Feature
Oscillate Feature
The distance and speed the head will travel on top of an area is controlled by the operator.
Line NOT Running
Oscillate Feature
Line NOT Running
System with not operate unless line is running
Set Up
Oscillate Feature
Line NOT Running
This allows variable parameters to be changed prior to starting a cycle.
Cloth Runs
Cloth Runs
Cloth Runs
Allows the operator to see the number of cloth advances since the last time the cloth roll was replaced. It also allows the operator to place a value in the Preset Variable for the number of advances before a Cloth Warning Preset alarm occurs. This is will vary depending on the value for the cloth increment set in the Set-Up value for the amount of cloth advance on each cycle.
Low Cloth
Cloth Runs
Cloth Runs
The cleaner has reached the minimum cloth limit and must be replaced before the machine will operate. Replace the roll of cloth using the same thread-up as currently installed on the cleaner. If you are not sure how to thread-up cloth see the “Cloth Thread-up Procedure.
Edge Dwell
Cloth Runs
Return Dwell
The time the cleaning head will dwell at the edges of the web width settings.
Return Dwell
Liquid Level Alarm
Return Dwell
The variable setting determines how long before the cleaner waits on the far end of the roll before it begins the return cycle.
Auto Restart
Liquid Level Alarm
Liquid Level Alarm
When in Auto cycle it is the amount of time before the next cleaning cycle will be automatically initiated.
Liquid Level Alarm
Liquid Level Alarm
Liquid Level Alarm
A level switch inside the liquid tank detects when the vessel requires refilling.
Web Cleaning Rollers and Systems
We are the leading manufacturer of high quality web cleaning rollers, providing web cleaning efficiency’s near 100%, and collect particles down to 10 microns in particle size, as stated by an independent testing laboratory.
Our company is the only contact web cleaning roller manufacturer who offers multiple tack level rollers that will meet your specific requirement without damaging your product.
And, our customers know they can re-order years after purchasing one of our rollers and receive the same tack level as the original purchase.
As a leading manufacturer of Web Cleaning Rollers and Fully Automatic Roll Cleaning systems it is evident that our combined roller system that cleans the web, and when required, moves the roller to an off-line position for wiping, is a simple and reliable design. Once the dirty roller moves to the offline position we simply index a clean roller in its place. This combination provides a High Volume Fully Automated Web Cleaner system that reliably keeps your product clean and your production line running without interruption.
Contact Cleaning Roll (CCR)
CCR Benefits Over Traditional Contact Cleaning Systems
Contact Cleaning Roll (CCR)

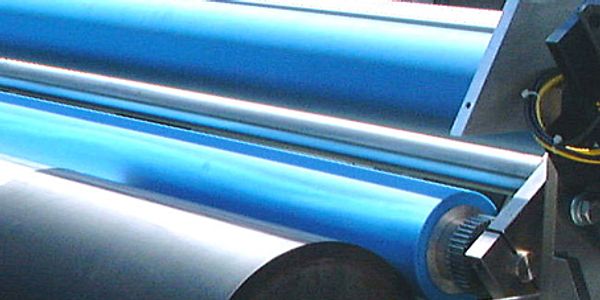

The Contact Cleaning Roll (CCR) is a proprietary polymercoated roll which removes surface contaminants from your product by simply rolling over its surface. Our rolls are designed for maximum cleaning effectiveness without disrupting your machine tension or edge guide controls. CCR performs in a wide variety of manufacturing processes for industries such as:
• film extrusion packaging • coating
• printing • laminating slitting
CCR Benefits Over Traditional Contact Cleaning Systems
Contact Cleaning Roll (CCR)
Unlike traditional cleaning methods that rely on solventbased adhesives or leachable plasticizers, CCR's customformulated elastomer surface enables it to clean by itself. And a CCR does not leave residue on your product. A key feature of our CCR is flexibility. We can cover an existing idle roll from your current process or manufacture a new roll to your machine specifications. CCRs can be produced in any diameter and length. Once it becomes loaded with contamination, you can wipe our CCR with a damp cloth, or let one of our Automatic Roll Cleaners do the job for you. Give us a call and we will be glad to quote you based on your requirements.
CCR Benefits Over Traditional Contact Cleaning Systems
CCR Benefits Over Traditional Contact Cleaning Systems
CCR Benefits Over Traditional Contact Cleaning Systems
CCRs are installed as idler rolls, providing zero relative velocity at the CCR/film contact point. Traditional brushes operate in counter rotation, possibly causing abrasion and scratches, while vacuum blower systems cannot overcome boundary layer air and have expensive filter systems.
Our CCR overcomes static charges on the film. Traditional brush or vacuum methods cannot provide this advantage.
Flexographic Printing Cleaners
CI Drum Cleaning
Flexographic Plate Cleaning
Flexographic Plate Cleaning
With the only traversing CI Drum Cleaner on the market that offers two cleaning pads for removing ink from the surface of the drum. The R.G. Egan system allows the operator to select our standard pad that gently wipes the drum surface, removing slip and ink build-up, or the second option, to select a soft bristle brush to push the cleaning fabric against the drum surface allowing a more aggressive wipe that helps remove some of the toughest inks dried on the surface of the drum. No one else offers this patented feature.
With the R.G. Egan design operators have simple options to control our cleaner and determine which set-up is the best choice for your press whether you are printing or down for the next set-up.
Flexographic Plate Cleaning
Flexographic Plate Cleaning
Flexographic Plate Cleaning
In November 2013 R.G. Egan Equipment, Inc. received a patent for wiping flexographic printing plates while the press is running, without diminishing print quality. This design is truly state-of-the-art and moves the industry a step closer to full automation for press cleaning and eliminating the need to stop to manually clean the press.
Our soft contact pad and fabric is able to collect debris stuck on the plate surface and transfer it to the surface of our fabric without damaging the plate, then advancing the cloth to a fresh area for the next wipe. And, by locating the cleaner before ink is reapplied to the plate we are able to keep from diminishing the print quality. In some applications the print quality improves due to the removal of dried ink sticking to the plate surface.
Custom Applications
At R.G. Egan Equipment we have a diverse customer base that includes Health Care Packaging, Adhesive Tape and Solar Powered Battery manufacturing and more. And, each of these industries requires a unique solution to resolve their process roll and web cleaning issues.
Engineers at R.G. Egan Equipment take pride in joining our customers as a team. And using our technology and experience we offer permanent solutions to our customer’s process cleaning problems.
With our custom designs our cleaners have also been used to remove contamination from products in vacuum chambers, wiping contamination from steel sleeves prior to coating, removed debris from copper that is used in the electronics industry and removed debris from laminating film that is used to manufacture architectural building products. These are just a few of our successful challenges.
